RN Export Series high voltage fuses
This product is designed for use in indoor AC 50Hz systems with a rated voltage of 3 to 35kV, providing overload and short-circuit protection for power equipment and power lines.
Product Overview
This product is designed for use in indoor AC 50Hz systems with a rated voltage of 3 to 35kV, providing overload and short-circuit protection for power equipment and power lines.

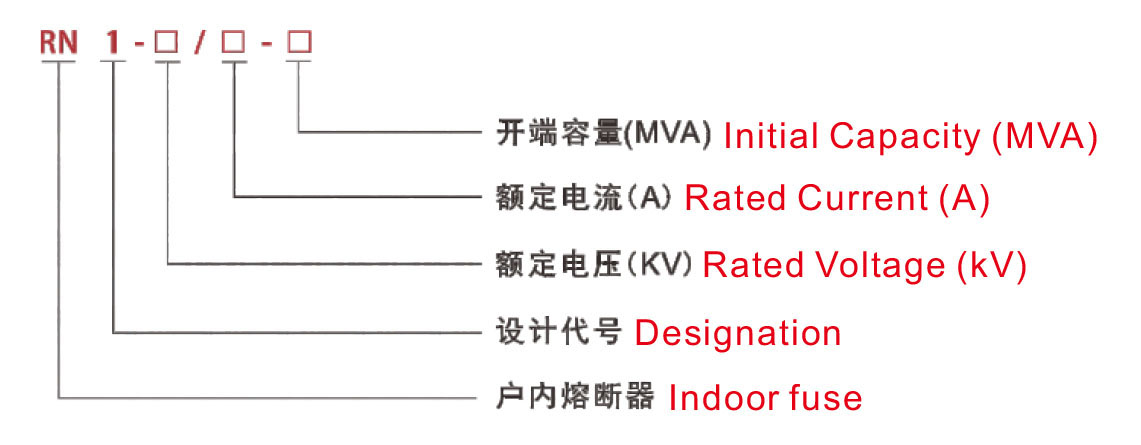

Domestic model
Product Model
Product Model | RN1（thick） | RN1（thin）3 | RN2-6、10 | RN2-15、20 | RN2-35 |
Rated voltage KV | 10 | 10 | 6、10 | 15、20 | 35 |
Rated current A | 50/60/75/100/120 | 0.5/1/2/3/5/10/15/20/30/40/50/60/75/100 | 0.5/1/2/3/5 | 0.5/1/2/3/5 | 0.5/1/3/5 |
Three-phase current interruption capacity MVA | 1000 | ||||
Overvoltage ratio | No more than 2.5 times the working voltage | ||||
size Φ | 70*460 | 55*410 | 55*210 | 55*410 | 55*605 |
weight kg | 2.7 | 1.5 | 5.6 | 12 | 15.6 |

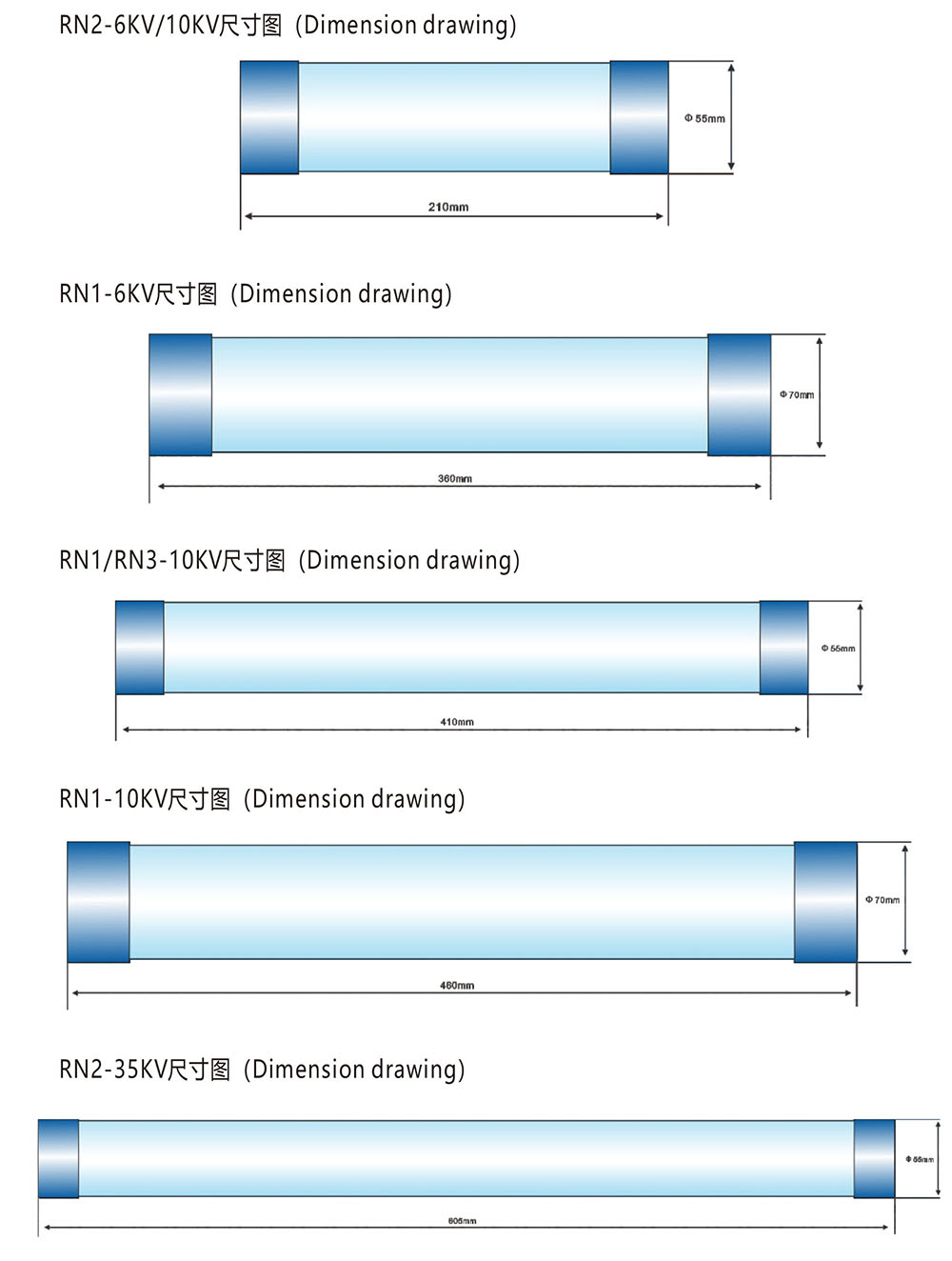

Dimension drawing
