RS Series Fast Fuses | 1200V 100kA aR Semiconductor Protection

RS□□ Fast fuse

This series of fuses is suitable for AC circuits at 50 Hz, with a rated voltage of up to 1200 V and a rated current of up to 1250 A. These fuses are primarily used for short-circuit protection (aR) in semiconductor equipment within electrical circuits. The rated breaking capacity of this fuse series reaches 100 kA. This product complies with national standards GB 13539.1 and GB/T 13539.4, as well as international standards IEC 60269-1 and IEC 60269-4 issued by the International Electrotechnical Commission.

+8613646533128

hhz@yqmng.com

Send inquiry

Tags:

Categories: Products / Fast fuse

Product Overview

Product model

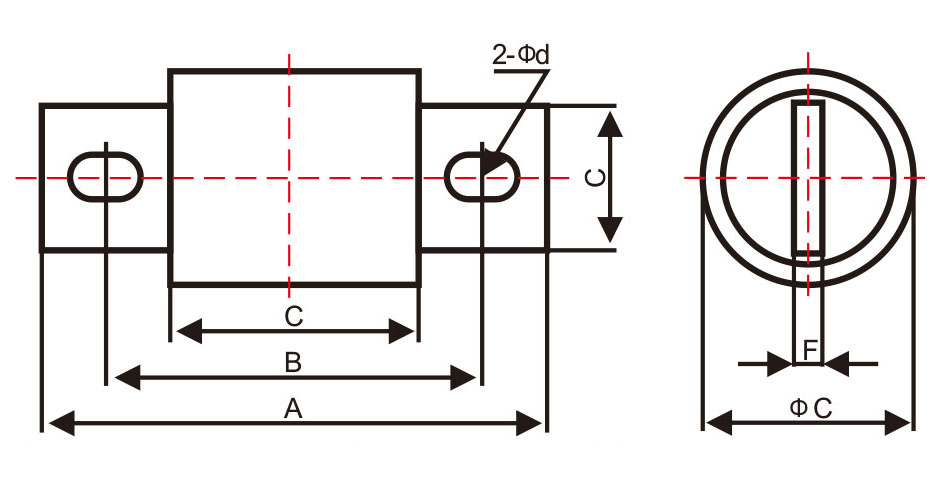

Product model	Rated voltage	Rated current	（mm）Overall dimensions							（g）Weight
Product model	Rated voltage	Rated current	A	B	C	ΦD	E	F	Φd	（g）Weight
RS94A	250	40-200	70	52	32	28	22	5	8.2×12	98
RS94C	250	40-200	80	62	43	28	22	5	8.2×12	106
RS94D	250	30-200	80	57	26	29	22	5	8.2×12	120
RS94E	250	30-200	80	60	41	31	24	5	8.2×12	142
RS94F	250	40-200	80	58	38	33	25	5	8.2×12	135
RS94G	250	40-250	88	62	42	36	26	5	10.2×15	202.5
RS94H	250	30-150	70	53	27	22	16	5	8.2×12	82
RS94J	250	40-160	67	51	26	26	19	3.5	8.2×12	102
RS95A	500/660	50-200	91	72	54	28	22	5	8.2×12	112.5
RS95B	500/660	50-200	92	73	54	31	25	5	8.2×12	150
RS95C	500/660	50-100	92	73	54	26	19	5	8.2×12	114
RS95D	500	100-200	92	72	45	30	25	5	8.2×12	149
RS95E	500/660	40-200	92	75	54	26	19	6	8.2×12	155
RS95F	500/660	50-160	93	82	48	26	19	5	8.2×12	145
RS95FS	500	100	100	75	53	31	25	3	8.2×12	124
RS95G	500/660	50-200	93	75	53	31	25	5	8.2×10	128
RS95H	250	200-250	96	70	42	36	26	5	10.2×15	193

Product model	Rated voltage	Rated current	（mm）Overall dimensions							（g）Weight
Product model	Rated voltage	Rated current	A	B	C	ΦD	E	F	Φd	（g）Weight
RS95K	250	250-400	98	70	38	47	32	5	10.2×15	320
RS95L	700	100-200	127	108	89	31	25	5	8.2×12	195
RS95M	500	50-200	110	81	50	31	25	5	8.2×10	165
RS95N	700	50-160	128	101	75	25	20	6	10.5×15	172
RS95P	250	250-315	98	68	41	38	25	6	10.5×18	218
RS95Q	500	50-160	110	95	75	25	18	5	6.2×10	148
RS95R	700	35-100	110	84	50	31	25	6	8.2×18	160
RS95S	250	160-250	100	65	30	36	30	6	10.5×15	188
RS95T	500/660	100-200	112	87	52	27	21	5	10×18	210
RS95U	500	100	100	82	48	26	19	5	8.2×12	148
RS95V	600	100-160	128	98	60	25	19	3	10.2×15	262
RS95W	500	40-200	129	96	53	34	24	6	12×20	183
RS96A	250	200-300	100	70	40	40	26	6	10.5×18	230
RS96B	500/660	200-315	110	83	53	38	26	6	10.5×18	240.5
RS96C	500/660	100-160	112	92	72	25	20	6	10.5×15	125
RS96D	500/660	75-200	112	90	60	36	26	5	10.5×15	241
RS96E	500/660	200	112	93	73	31	25	5	7×9.5	166
RS96F	500/660	200-400	113	87	70	40	26	6	10.5×15	255
RS96G	500/660	400-500	114	87	56	51	38	6	10.5×15	437
RS96GK	250	400-500	97	67	38	51	36	8	11×17	198
RS96H	500/660	200	117	92	67	28	22	3	7×9.5	132
RS96K	500/660	200-400	117	80	52	40	32	6	10.5×15	280
RS96L	500/660	200-315	117	89	57	37	30	6	10.5×15	280
RS96M	500	50-200	135	113	67	34	20	5	8.2×12	196
RS96N	500	350-315	115	87	58	39	26	6	10.5×18	245
RS96P	700	125-200	130	90	50	38	25	6.3	10.5×26	250
RS96Q	250	315-400	100	71	38	43	35	9	10.5×15	195
RS96R	500/660	35-300	113	83	53	40	30	6.5	12.2×18	197
RS96S	250	40-200	95	68	40	27	20	5	9×18	153
RS97A	500/660	300-500	120	90	58	46	32	6	10.5×18	450
RS97B	500/660	50-200	126	100	74	38	26	6	10.5×18	295
RS97C	500/700	350-500	128	98	70	51	38	6	10.5×18	460
RS97D	500/700	200-315	130	98	72	38	26	6	10.5×18	288
RS97E	500/660	200-315	145	111	77	38	29	5	7×11	300
RS97F	500/660	200-400	145	105	76	41	28	8	10.5×18	355
RS97G	500/660	200-400	146	110	76	41	29	5	7×9.5	341
RS97H	500/660	200-400	146	110	75	48	36	8	12.5×18	520
RS97K	500/660	200-400	130	100	70	53	42	8	14.2×18	480
RS97L	500	200-400	125	103	48	51	38	6	10.5×18	420
RS97M	500	400-500	145	102	53	51	38	6.3	14.5×30	465
RS97N	500/660	200-315	145	113	88	38	25	6.3	10.5×18	353
