This series of fuses are suitable for electrical installations with an AC frequency of 50Hz, a rated voltage up to 1200V, and a rated current up to 630A. There are three types of fuses with different structures. One is used for overload and short-circuit protection (gG) in electrical circuits. Another type as short-circuit protection (aR) for semiconductor equipment; It can also be derived as motor short-circuit protection (aM).The rated breaking capacity of this series of fuses is up to 80kA.This series of fuses comply with the national standard GB13539 and the International Electrotechnical Commission standard IEC60269.

Product model

Product model	Rated voltage	Rated current	（mm）Overall dimensions								（g）Weight
			A	B	C	ΦD	E	F	H	Φd
RGS4	AC690V/AC800V	10-100A	49.5	61	77	16.5	12.5	2.0	18	6.5x9	33.33
RGS4A	AC690V	125-200A	50	77	98	23.8	20	3	25.5	9x14	85.6
RGS4B	AC690V	225-315A	50.5	82	108	31	25	3	34	10.5X16	140.1
RGS7	AC690V	60-350A	55	80	180	38	25	3	39	10.5X16	205.8

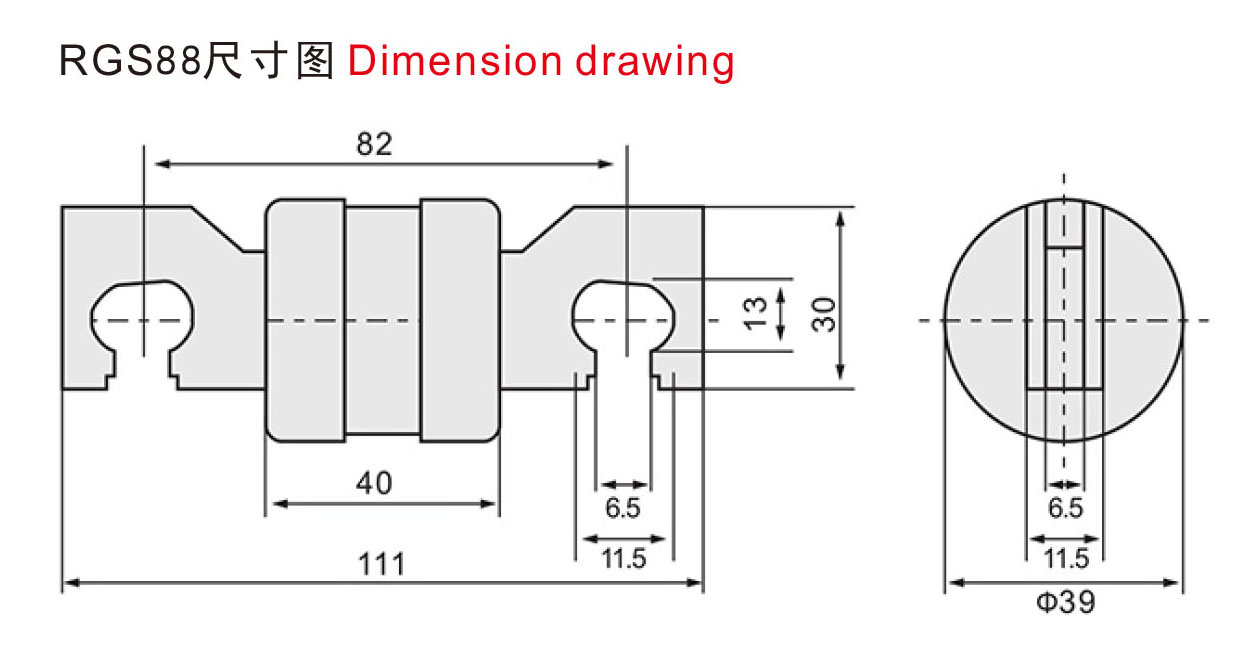

Dimension drawing

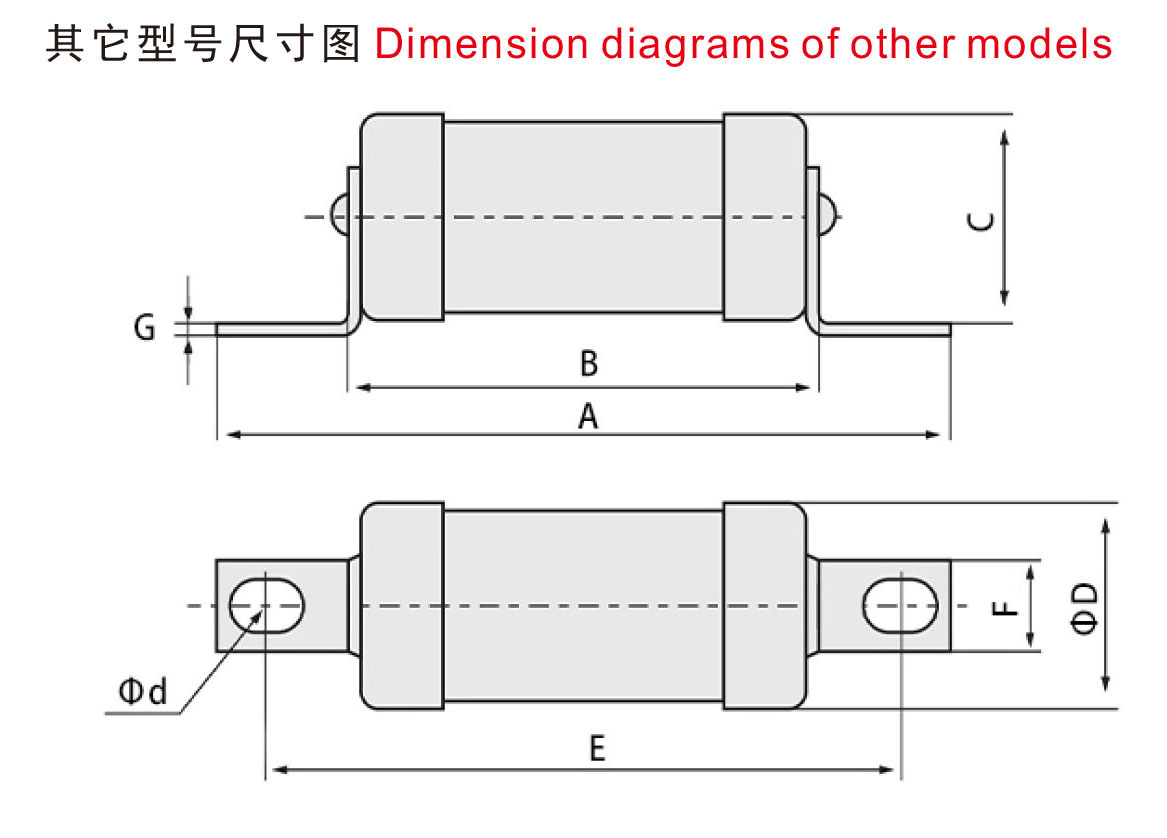

Dimension diagrams of other models
