RSM□□□□ Charging pile fuse
The fuse used in new energy vehicle charging stations is a specialized protective device engineered to ensure the safe operation of vehicle systems. It serves as a comprehensive protection solution for electric vehicles, providing reliable protection for on-board batteries, on-board circuitry, and inverters, while fully meeting requirements for overload and short-circuit protection across operational conditions.
Product Overview
Product model | ARated current（A） | Installation |
RSM2478 | 50A-125A | M8 |
RSM3178 | 150A-200A | M10 |
RSM3782 | 250A-400A | M10 |
RSM4988 | 500A-600A | M10 |
RSM6288 | 700A-800A | M13 |
Model | A±2 | B±0.5 | C±1 | D±1.5 | E±1.5 | F±1 | G±1 | H±0.2 |
RSM2478 | 124 | 24 | 78 | 95 | 109 | 9 | 18 | 3.2 |
RSM3178 | 124 | 31 | 78 | 95 | 109 | 9 | 22 | 5 |
RSM3782 | 144 | 37 | 82 | 105 | 122 | 10.5 | 25 | 6 |
RSM4988 | 144 | 49 | 88 | 105 | 122 | 10.5 | 38 | 6 |
RSM6288 | 183 | 62 | 88 | 119.5 | 152 | 13.5 | 50 | 10 |

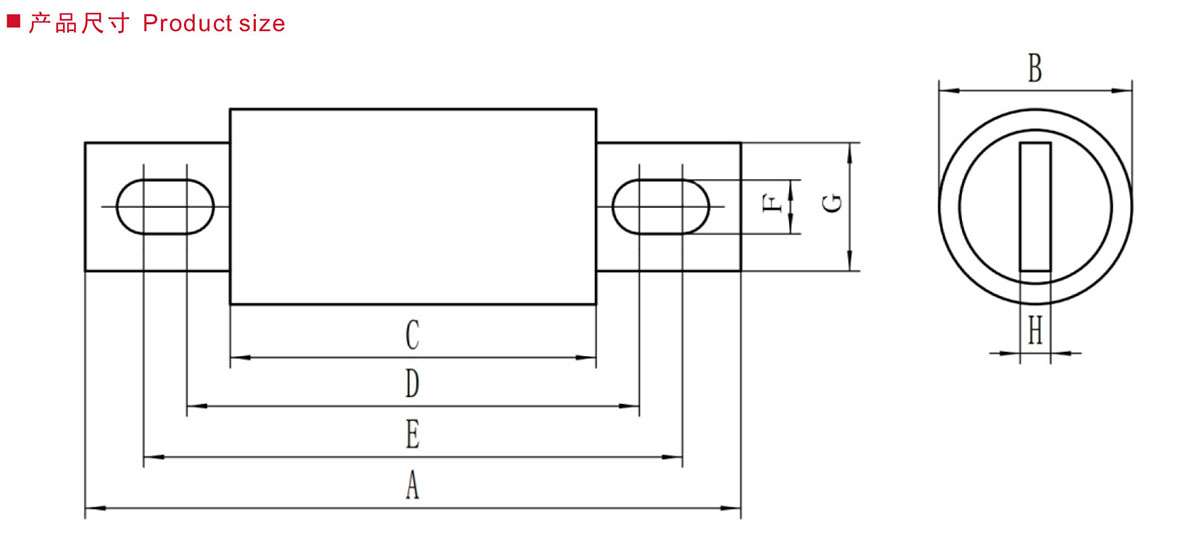

Product size

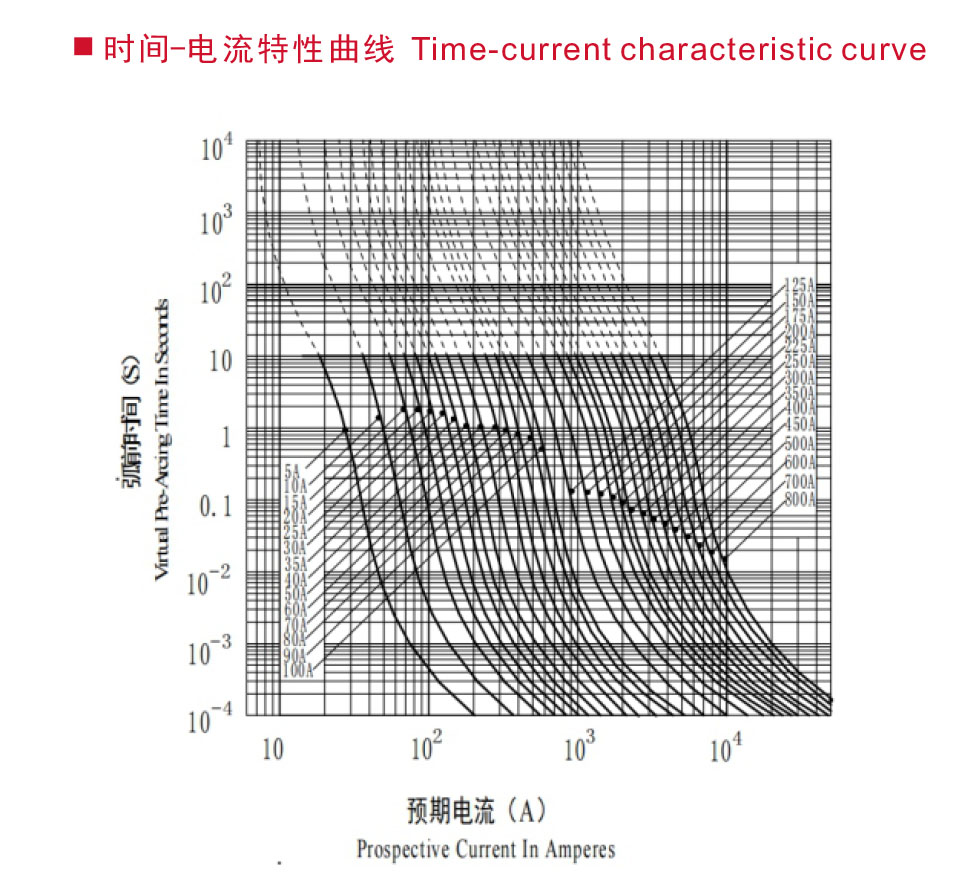

Time-current characteristic curve

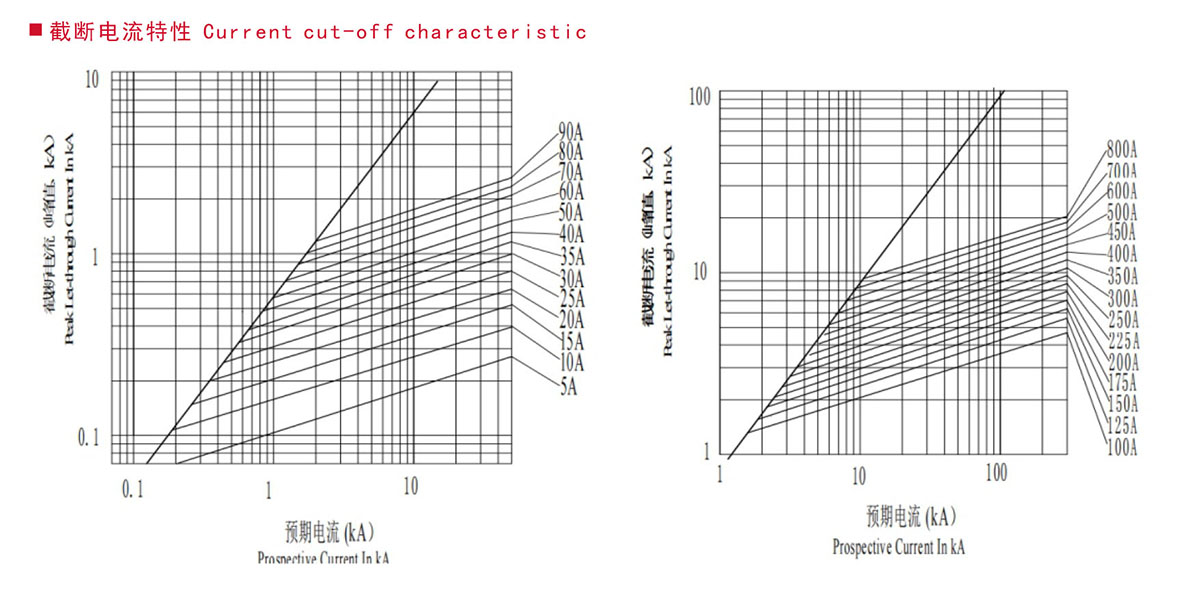

Current cut-off characteristic
